Float valve

PN10 to PN50, 150Lbs to 300Lbs according to DN

DN15 to DN200 - 1/2" to 8"

Characteristics
Options
Achievements
Options
  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Operation :
  • Limit switches (mechanical, inductive or other)
  • Junction box
  • Specific configurations :
  • Removable seat
  • Heating jacket
  • Certifications :
  • ATEX certification
  • Fire-safe design



Notes :

Some options are not compatible

Special valve can be designed upon request

Dimension

DN15 to DN200

Pressure class

PN10 to PN50, 150Lbs to 300Lbs according to DN

Connection

Welded, screwed-on or floating flange

Body shape

Straight, angle, other...

Material in contact with the fluid

Steel, stainless steel, other...

Disc seating surface

Metal / metal, PTFE, O’rings, other...

Stem sealing system

Sealed O’rings stuffing box, with pure or filled PTFE rafters, stuffing box with graphite packing, double stuffing box (O’rings + packing)

Float valve DN25 PN16 in stainless steel 304L, tank adapted threaded connection

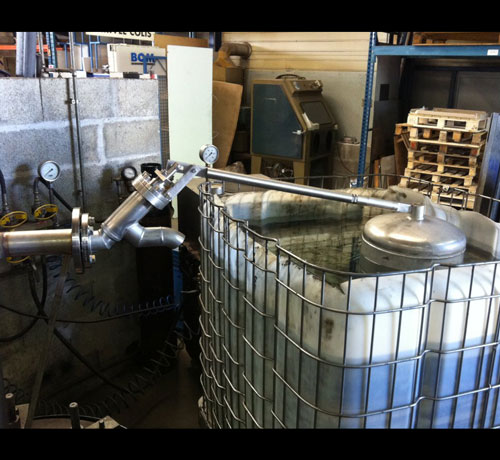

Float valve DN80 PN16 in stainless steel 316L operating test, draining free flange connection
Float valve DN50 PN16 in stainless steel 316L pneumatic test, flange angle connection with float high level adjustment
img-left

Operating principle:

Float valve allows a predefined tank filling with float automatic valve opening/closing



Advantages:

- Fast tank filling (large flow)

- Existing tank adapted valve (connection, dimensions, high level - low level)

- Electric and pneumatic power free (automatic mechanical operation)

Operating conditions
Operating conditionsCorrosive
