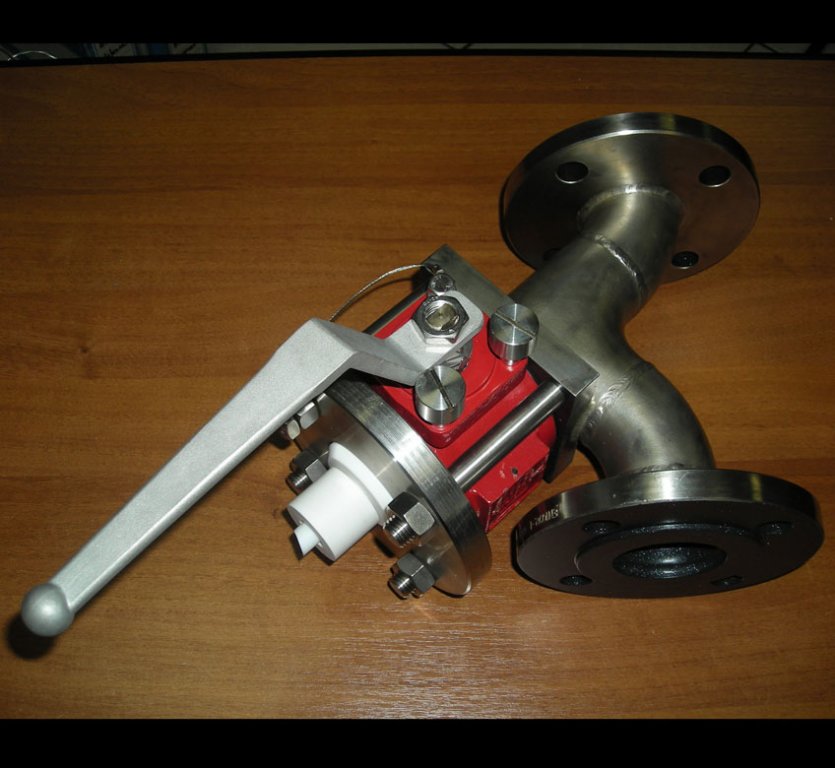

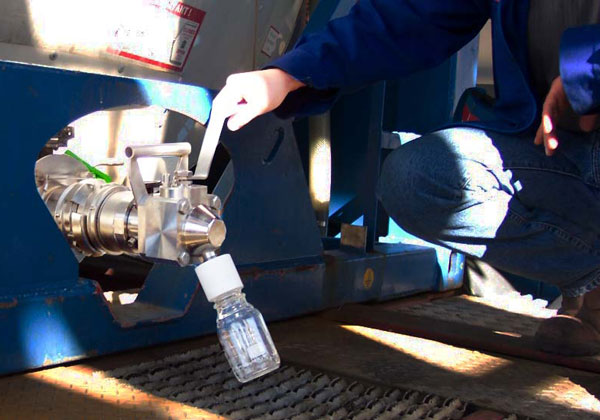

Capacitive ball sampling valve
Type 8000
PN10 to PN100 - 150Lbs to 600Lbs
DN10 to DN400 - 3/8" à 16"
Characteristics
Achievements
Options
- Connection :
- All connection type (flanged, welded or floating, threaded, SW, BW, male-female fitting, single or double male-female fitting, other specific connection)
- Motorization:
- Electrical actuator
- Manual override
- Lockable manual system
- Extended manual operator with/without cardans
- Deadman box (spring return control)
- Actuator flange according ISO
- Limit switch (mechanical, inductive more...)
- Electro-distributor
- Junction box
- Specific configurations:
- Heating jacket
- Leak detector in the stuffing box
- Fitted connector
- Connector with outlet
- Control cabinet
- Flask holder
- Cleaning nozzle
- Certifications :
- ATEX certification
- FDA certificate for body seal and packing
- Fire-safe design
Notes :
Some options are not compatible
Special valve can be designed upon request
Dimension
DN10 to DN400
Pressure class
PN10 to PN100 - 150Lbs to 600Lbs according to DN
Connection
Welded flanges, SW, BW, flanged
Capacity
25ml, 50ml, 100ml, more...
Body seal material
Stuffing box, pur PTFE or 25% glass charge, graphite packing material, double-sealed stuffing box.
Body seal material
25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...
Seat material
Graphite filled PTFE, delrin, glass filled PTFE, stainless steel filled PTFE, nylon, polypropylene, peek, TFM 1600, TF4215...
Material in contact with the fluid
Steel, stainless steel, duplex or super duplex, inconel, incoloy®, hastelloy®, titane, zirconium, uranus®, nickel, tantale, monel, PVDF
Body type
Horizontal mounting, vertical mounting, flanged, mounted on tank, Guillemin, more...
Motorization
Manual, pneumatic (single or double acting), electrical or hydraulic
Sampling valve with 15ml capacitive ball, vertical, DN32 PN16 in PVDF
Sampling valve with 15ml capacitive ball in Uranus B6, special connection
Sampling valve with 50ml capacitive ball, horizontal DN40 PN16 PFA-sheathed stainless steel with pneumatic actuator
Sampling valve with 50ml capacitive ball, horizontal, heating jacket, DN40 PN16 in stainless steel 316L
Sampling valve with 50ml capacitive ball, vertical, DN50 PN16 Hallar sheathed stainless steel
Sampling valve with 50ml capacitive ball, vertical, heating jacket, DN50 PN16 in stainless steel 304L
Sampling valve with 50ml capacitive ball for tank, firemen connection DN80 in stainless steel 316L
Sampling valve with 50ml capacitive ball for tank, firemen connection DN80 in stainless steel 316L
Download the specification sheet
http://www.bom.fr/sites/default/files/capacitive_ball_sampling_valve_v.pdf
