Parallel sight glasses
Type 9000
PN10 to PN100 - 150Lbs to 600Lbs according to DN
DN15 to DN300 - 1/2" to 12"
Characteristics
Achievements
Options
- Connection :
- Any type of connection (screwed-on, welded or floating, threaded, SW, BW, double male or female connection, single male or female connection or other special connections)
- Specific configurations :
- Heating jacket
- Counterweight calibrated check valve
- Visualisation fins
- Protective grate
- Lighting
- Double protection glass
- Draining or cleaning nozzles
- Certifications :
- ATEX certification
- FDA certificate for body seal, other...
Notes:
Some options are not compatible
Special valve can be designed upon request
Dimension
DN15 to DN300
Pressure class
PN10 to PN100 - 150Lbs to 600Lbs according to DN
Connection
Welded, screwed-on or floating flange
Sight type
Parallel
Body shape
Straight, 3 ways, angle, other…
Glass type
Borosilicate glass (pyrex), VTS glass, other...
Material in contact with the fluid
Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, uranus®, nickel, monel
Body seal material
25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM…
Batch of parallel sight glasses in stainless steel 316L, with 3 ways body
Painted steel parallel sight glasses DN25 PN16, with protective grate
Parallel sight glass DN25-50 PN16 in B6 Uranus, with DN10 nozzle
Painted steel parallel sight glasses DN50 PN16, with visualisation fins

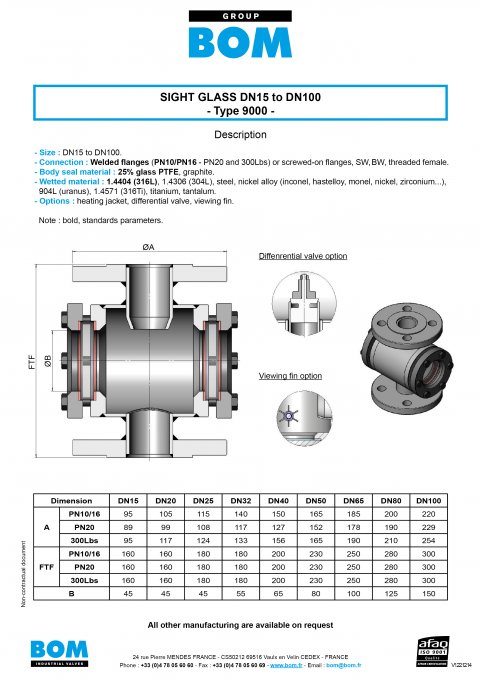

Download the specification sheet
http://www.bom.fr/sites/default/files/sight_glass_1.pdf
img-left
Material types
Material typesSteelStainless steelDuplex, super duplexUranus ®TitaniumHastelloy ®AlloyInconel, Incoloy ®Monel
