In line inlet/outlet Strainer
Type 500
PN10 to PN100 - 150Lbs to 600Lbs
DN15 to DN300 - 1/2" to 12"
Characteristics
Achievements
Options
- Connection :
- Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
- Specific configurations :
- Draining or cleaning nozzles
- Heating jacket
- Low point drain nozzle
- Manometer
- Magnetic bars
- Porous metal filter cartridges
- Quick cover opening
- Certifications :
- ATEX certification
- FDA certificate for body seal and stuffing box packing
Notes:
Some options are not compatible
Special valve can be designed upon request
Dimension
DN15 to DN300
Pressure class
PN10 to PN100 - 150Lbs to 600Lbs
Connection
Welded, screwed-on or floating flange
Body shape
Straight In-line Inlet/Outlet
Body seal material
25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM…
Material in contact with the fluid
Steel, stainless steel, inconel, incoloy®, hastelloy®, uranus®, nickel, monel, other...
Bonnet type
Bolted, SMS connection, tilting bolts, clamp, other...
Filtration
From 20 µm to 10mm and more

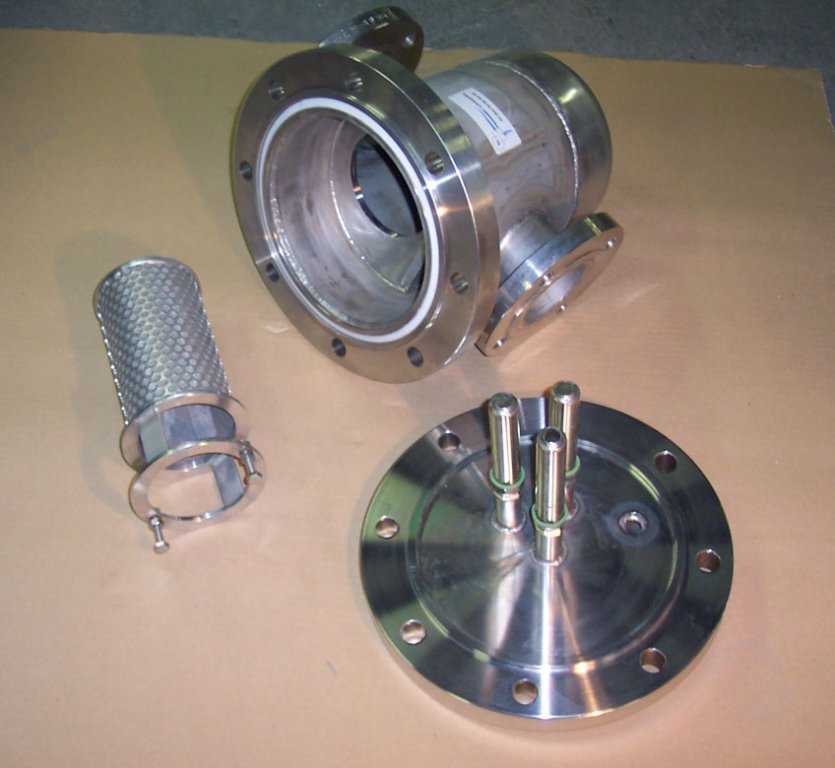

In-line inlet/outlet Strainer DN50 PN16 in stainless steel 316L, with magnetic bars, filtration 250µm

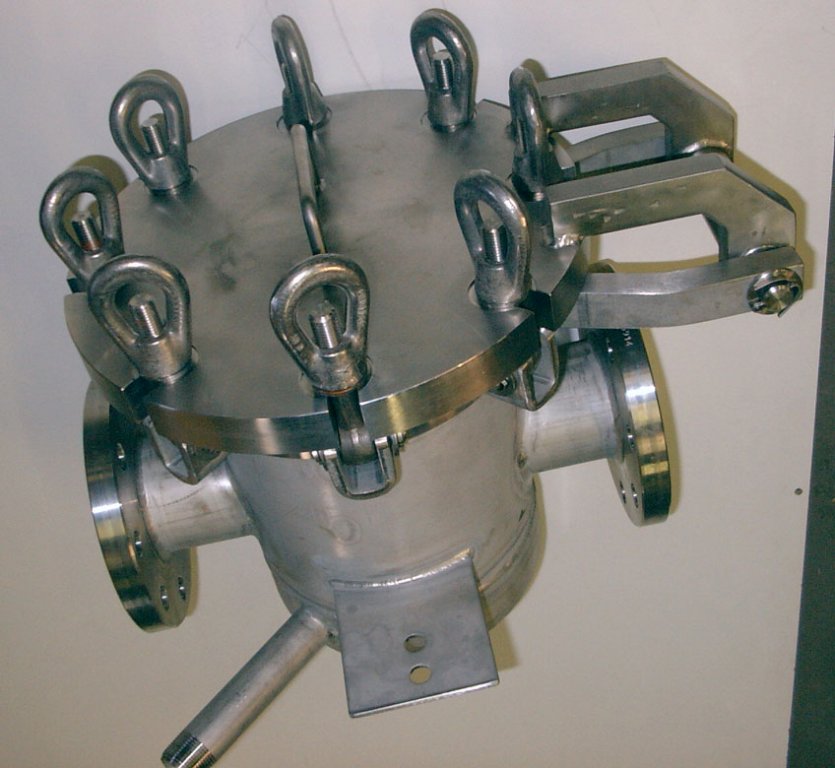

In-line inlet/outlet Strainer DN100 PN16 in stainless steel 316l, wing bolts and hinge opening, filtration 800µm

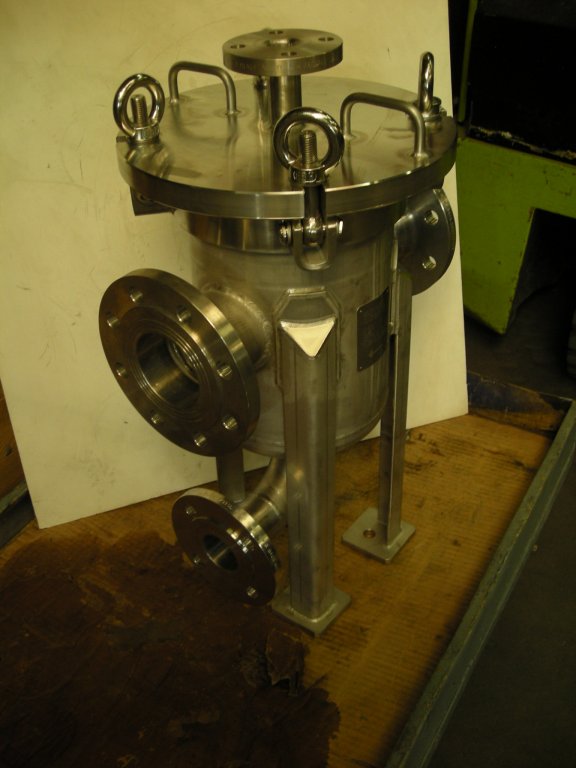

In-line inlet/outlet Strainer DN80 PN16 in stainless steel 316L, tilting bolts opening, low point drain nozzle and vent nozzle, filtration 3mm

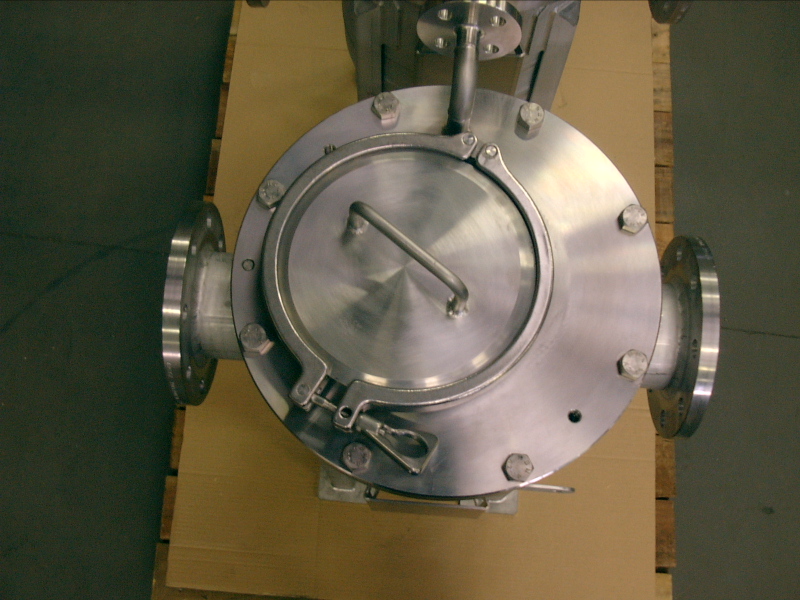

In-line inlet/outlet Strainer DN100 PN16 in stainless steel 304L, quick cover opening with clamp connection extended on the bonnet, vent nozzle, filtration 150µm

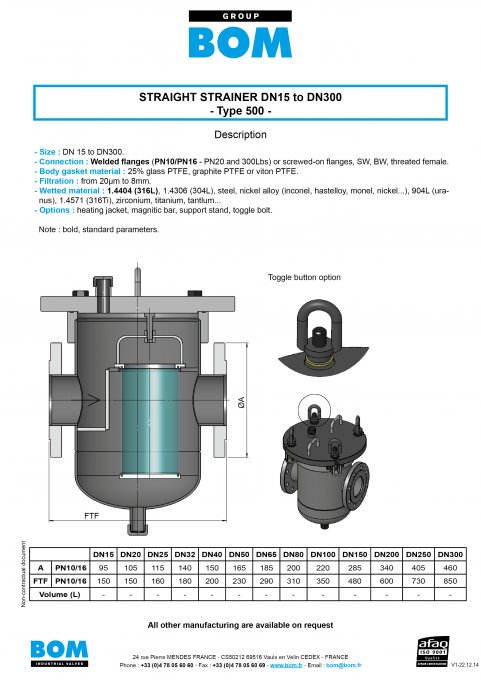

Download the specification sheet
http://www.bom.fr/sites/default/files/straight_strainer_1.pdf
