Swing check valve
Type 400
PN10 to PN100 - 150Lbs to 600Lbs according to DN
DN15 to DN300 - 1/2" to 12"
Characteristics
Achievements
Options
- Connection :
- Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
- Operation :
- Pneumatic actuator
- Lever and counterweight
- Specific configurations :
- Heating jacket
- Hydraulic or pneumatic absorber
- Draining or cleaning nozzles
- Certifications :
- ATEX certification
- Fire-safe design
- FDA certificate for body seal and stuffing box packing
Notes:
Some options are not compatible
Special valve can be designed upon request
Dimension
DN15 to DN300
Pressure class
PN10 to PN100 - 150Lbs to 600Lbs according to DN
Connection
Welded, screwed-on or floating flange
Body shape
Straight
Valve type
Swing valve and bolted bonnet
Material in contact with the fluid
Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, zirconium, uranus®, nickel, monel
Disc seating surface
Metal / metal, PTFE, EPDM, viton, viton FEP, Kalrez®, stellite, other…
Actuator
Lever and counterweight, pneumatic (single or double effect)

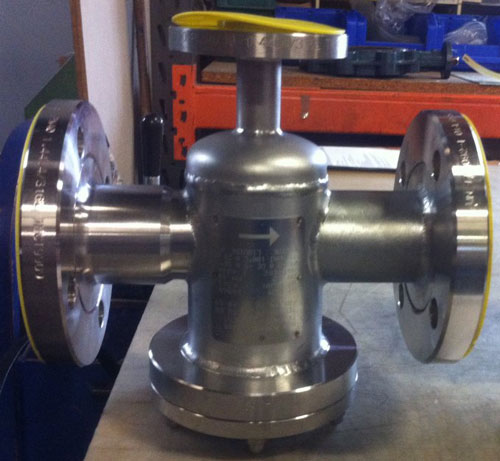

Swing check valve DN50 PN50 in C276 stainless steel Hastelloy with lateral and low point nozzle

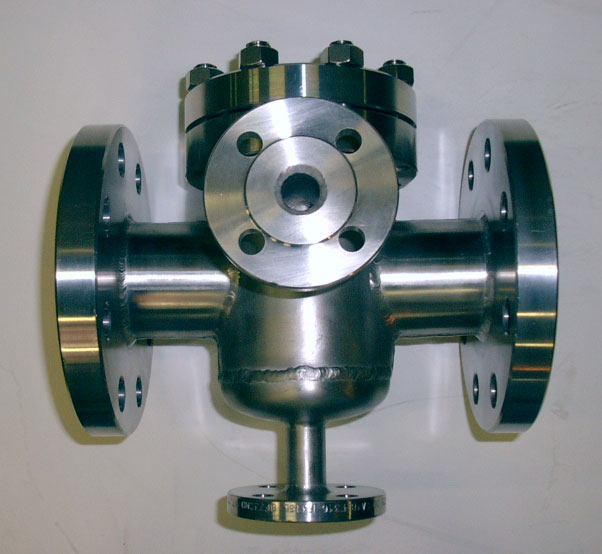

Swing check valve DN40 PN20 in stainless steel 316Ti

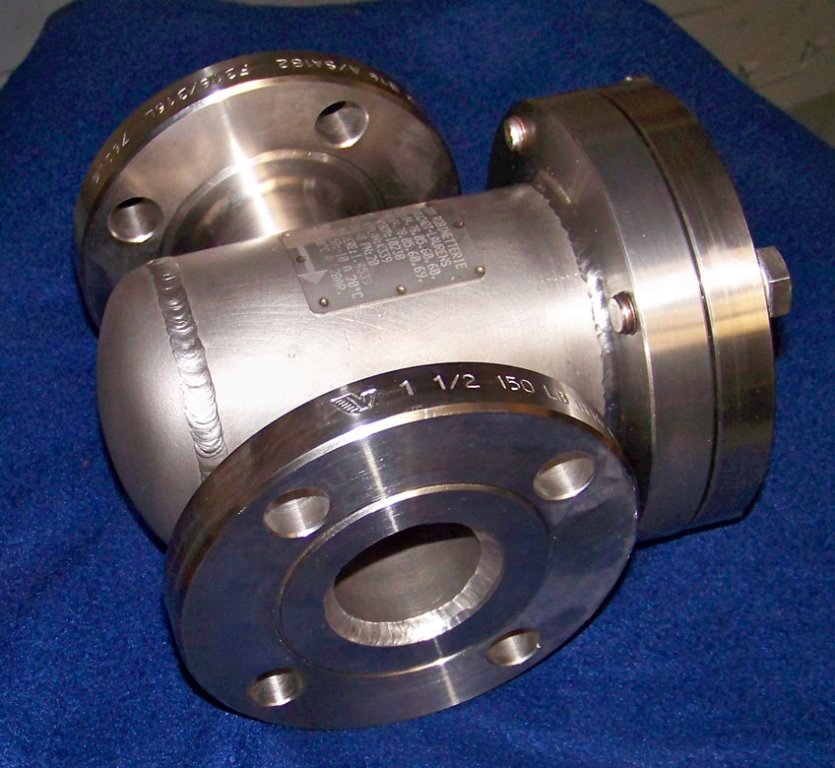

Swing check valve DN50 PN40 in stainless steel 304L with low point draining, PTFE sealing

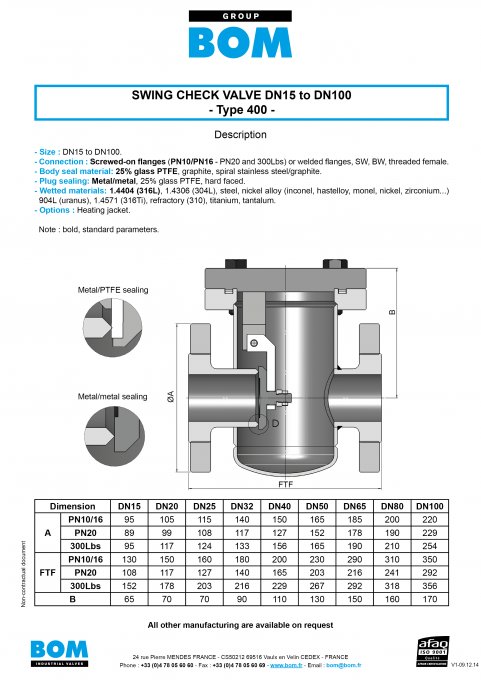

Download the specification sheet
http://www.bom.fr/sites/default/files/swing_check_valve_0.pdf
