Y-type strainer
Type 520
PN10 to PN50 - 150Lbs to 300Lbs
DN15 to DN300 - 1/2" to 12"
Characteristics
Achievements
Options
- Connection :
- Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
- Specific configurations :
- Draining or cleaning nozzles
- Heating jacket
- Low point drain nozzle
- Manometer
- Magnetic bars
- Porous metal filter cartridges
- Quick cover opening
- Certifications :
- ATEX certification
- FDA certificate for body seal and stuffing box packing
Notes:
Some options are not compatible
Special valve can be designed upon request
Dimension
DN15 to DN300
Pressure class
PN10 to PN50 - 150Lbs to 300Lbs according to DN
Connection
Welded, screwed-on or floating flange
Body shape
Y-type
Body seal material
25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, viton FEP, kalrez®, EPDM…
Material in contact with the fluid
Steel, stainless steel, inconel, incoloy®, hastelloy®, uranus®, nickel, monel, other
Bonnet type
Bolted, SMS connection, tilting bolts, clamp, other...
Filtration
From 20 µm to 10mm and more
Y-Strainer DN32 PN16 in PFA-sheathed stainless steel, filtration 20µm
Y-Strainer DN25 PN16 in stainless steel 304L, with differential manometer, filtration 800µm
Y-Strainer DN300 PN16 in Uranus B6, with bolted bonnet, filtration 4mm

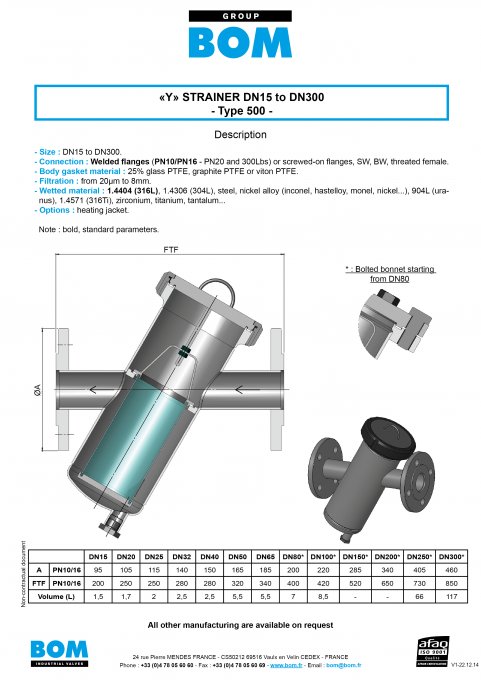

Download the specification sheet
http://www.bom.fr/sites/default/files/y_strainer_2.pdf
