Filtro tipo Y
Type 520

PN10 to PN50 - 150Lbs to 300Lbs

DN15 to DN300 - 1/2" to 12"

  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Specific configurations :
  • Draining or cleaning nozzles
  • Heating jacket
  • Low point drain nozzle
  • Manometer
  • Magnetic bars
  • Porous metal filter cartridges
  • Quick cover opening
  • Certifications :
  • ATEX certification
  • FDA certificate for body seal and stuffing box packing



Some options are not compatible

Special valve can be designed upon request


DN15 to DN300

Pressure class

PN10 to PN50 - 150Lbs to 300Lbs according to DN


Welded, screwed-on or floating flange

Body shape


Body seal material

25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, viton FEP, kalrez®, EPDM…

Material in contact with the fluid

Steel, stainless steel, inconel, incoloy®, hastelloy®, uranus®, nickel, monel, other

Bonnet type

Bolted, SMS connection, tilting bolts, clamp, other...


From 20 µm to 10mm and more

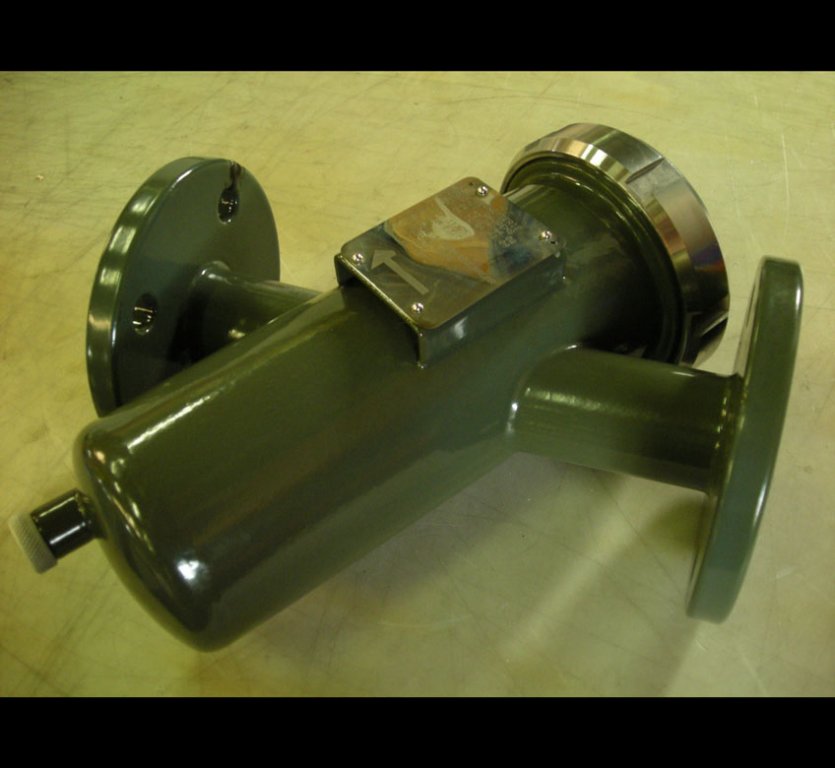

Y-Strainer DN32 PN16 in PFA-sheathed stainless steel, filtration 20µm
Y-Strainer DN25 PN16 in stainless steel 304L, with differential manometer, filtration 800µm
Y-Strainer DN300 PN16 in Uranus B6, with bolted bonnet, filtration 4mm

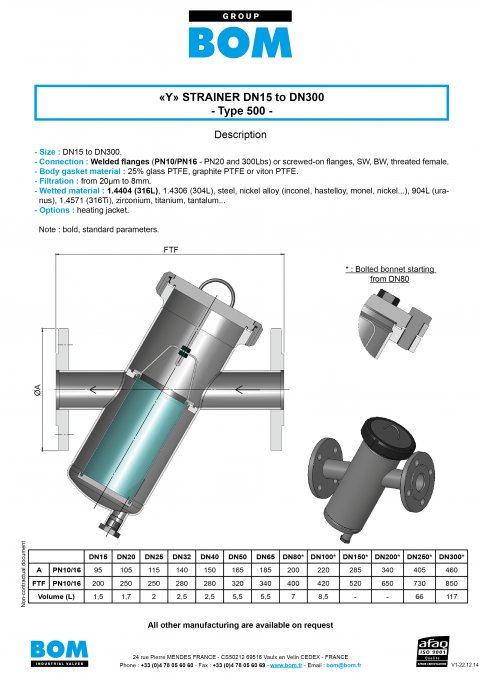

Download the specification sheet
