Válvula de lavado e inyección

PN10 to PN50, 150Lbs to 300Lbs according to DN

DN15 to DN50 - 1/2" to 2"

  • Connection :
  • Any type of connection (screwed-on, welded or floating flange, threaded, SW, BW, double male or female connection, single male or female connection or other special connections under request)
  • Operation :
  • Stainless steel pneumatic actuator
  • Electric actuator
  • Manual override
  • Manual operator with locking mechanism
  • Extended manual operator with/without cardans
  • Manual operator mounted on ISO base for later adaptation of actuator
  • Limit switches (mechanical, inductive or other)
  • Electro-distributor
  • Junction box
  • Certifications :
  • ATEX certification
  • FDA certificate for body seal and stuffing box packing


Notes :

Some options are not compatible

Special valve can be designed upon request



DN15 to DN50

Pressure class

PN10 to PN50, 150Lbs to 300Lbs according to DN


Welded, screwed-on or floating flange

Material in contact with the fluid

Steel, stainless steel, duplex and super duplex, inconel, incoloy®, hastelloy®, titanium, uranus®, nickel, monel

Stem sealing system

Sealed O’rings stuffing box, with pure or filled PTFE rafters, stuffing box with graphite packing, reinforced stuffing box (O’rings + packing), double safety stuffing box

Body seal material

25% PTFE glass, graphite, reinforced graphite, stainless steel graphite or stainless steel PTFE spiral, helicoflex®, viton, kalrez®, EPDM...

Seats material

Graphite filled PTFE, glass filled PTFE, stainless steel PTFE, delrin, nylon, polypropylene, peek, TFM1600, TF4215...


Manual, pneumatic (single or double-acting), electrical

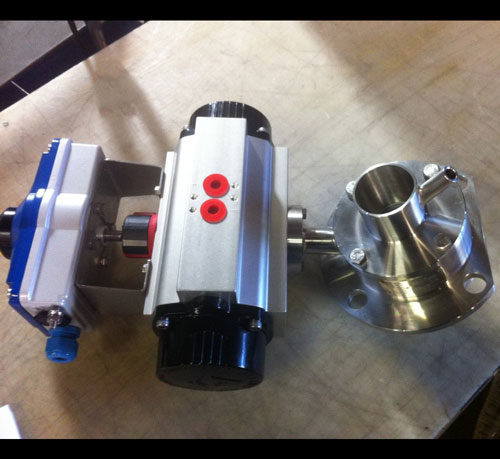

Spray rinse ball valve DN40 PN16 in stainless steel 316L, with flushing ball, angle axis, double effect pneumatic actuator and limit switch box
Spray rinse ball valve DN25 PN16 in stainless steel 316L, tank welded, flushing ball, angle axis, double effect pneumatic actuator
Spray valve DN50 PN16 in stainless steel 316L, flushing ball, angle axis, cleaning nozzles, with double-acting pneumatic actuator and limit switch box

Operational  principle:

Tank cleaning and spraying



- Tank flushing system to avoid any disturbance (no introduction inside the vessel)

- In closed position, spray holes are inside the valve to ensure that there will be no clogging and a smooth next tank cleaning

- Fully automated system without intervening on the valve

- Whether tank welded or PAD removable
